5‑Axis Machining in Vietnam: A Buyer Guide for Complex Parts
How to qualify 5‑axis machining in Vietnam: when to use it, what fails, and the evidence that de‑risks multi‑axis parts.
5‑axis capable
Inspection reports
Export‑ready delivery
DFM feedback
What this guide covers
Many “5‑axis capable” shops can cut parts, but 5‑axis programs fail when the supplier can’t prove orientation accuracy, datum integrity, and inspection method alignment. This page is written for buyers (Engineering, Quality, Procurement) who need predictable acceptance—not just metal removed.
Key idea: 5‑axis is a risk trade‑off. You reduce setup stack‑up, but you introduce rotary‑axis and post‑processor risk.
Qualification is about evidence: what the supplier measures, how they decide pass/fail, and what they will ship with the parts.
Contents
- What 5‑axis machining actually solves
- When 5‑axis is worth it (vs 3‑axis, 3+2, turn‑mill)
- Common failure modes in 5‑axis programs
- RFQ data that prevents quote surprises
- How to qualify a 5‑axis supplier in Vietnam
- Inspection strategy for multi‑axis parts
- Receiving‑ready handoff (docs, labeling, packaging)
Who this is for
- Engineering: complex geometry, angled features, multi‑face datums
- Quality: CTQs, measurement method, orientation accuracy evidence
- Procurement: predictable lead time, fewer back‑and‑forth questions
Proof (redacted samples)
What receiving‑ready evidence looks like

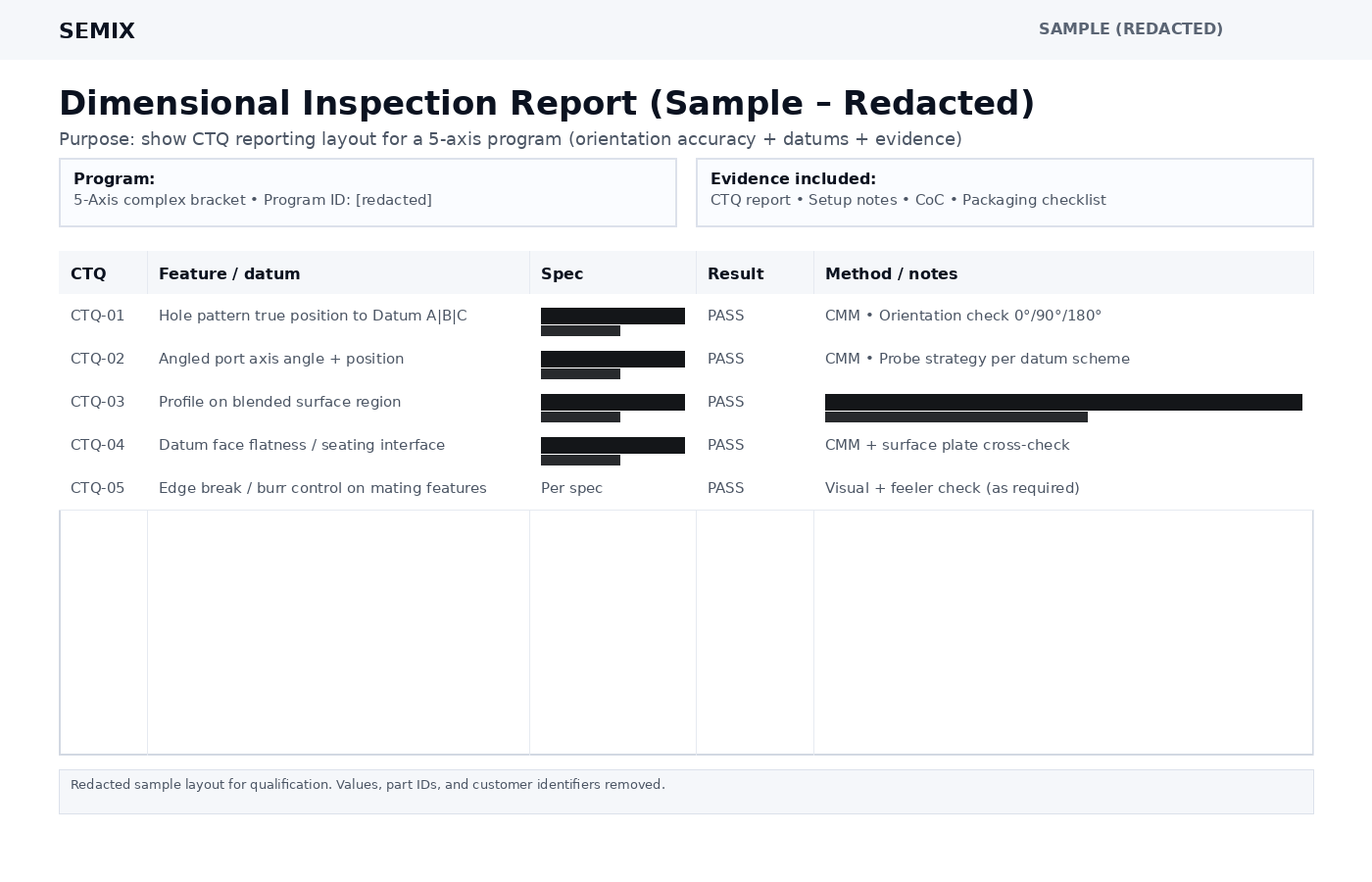

If you are qualifying a 5‑axis machining in Vietnam supplier, ask to see evidence in the exact format your receiving team can approve. Below is a redacted example of a CTQ report layout for a multi‑axis program—showing how datums, orientation checks, and pass/fail notes are captured.
CTQ snippet (how it is written)
Illustrative excerpt—your program CTQs and limits will differ.
| Field | Example (redacted) |
|---|---|
| CTQ | CTQ‑01 — Hole pattern true position to Datum A|B|C |
| Spec | ≤ [redacted] |
| Inspection orientation | 0° / 90° / 180° orientation sweep (rotary‑axis verification) |
| Method | CMM; fixture and alignment per datum scheme |
| Pass/fail note | Decision rule agreed at RFQ (guard band if required) |
Why this matters: 5‑axis reduces setup stack‑up, but introduces rotary‑axis and post‑processor risk. Evidence makes that risk visible before you ship the first lot.
Copy/paste
RFQ evidence checklist for 5‑axis programs
Use this short checklist when you email an RFQ for 5‑axis machining in Vietnam. It reduces quote ambiguity and makes receiving acceptance predictable.
Evidence checklist (copy/paste)
- Provide STEP + drawing PDF (GD&T), and mark 3–10 CTQs + assembly datums (A|B|C).
- Confirm the inspection method + orientation used at receiving (CMM/optical). Request an orientation sweep if angle‑dependent error is a risk.
- Agree on pass/fail decision rules for borderline CTQs (guard band if measurement uncertainty is material).
- Require a shipment evidence pack: CoC, MTR/material certs, finish certs (if applicable), CTQ report, and part/packaging photos.
- Require revision + CAM/post change control (how updates are communicated and how first‑piece/FAI gates are handled).
What we can share under NDA
If your program is sensitive, we can share deeper examples once an NDA is in place.
- Redacted CTQ report samples for similar multi‑axis complexity (structure + decision notes).
- Rotary‑axis verification approach summary (ISO 230‑7 style evidence, when applicable).
- Example inspection orientation sweep plan + reporting notes used to avoid receiving disputes.
- Packaging/kitting note format for export shipments (labels, protection, and handling notes).
What 5‑axis machining actually solves
“5‑axis” can mean two very different things:
- 3+2 (positional 5‑axis): the part is indexed to an angle, then machined like 3‑axis. Great for many angled features.
- Simultaneous 5‑axis: rotary axes move while cutting. Useful for smooth surfaces, tool access, and reducing scallops—but it adds kinematic risk.
The buyer‑side question is not “Do you have a 5‑axis machine?” It is: Which features truly require 5‑axis, and how will the supplier prove the resulting geometry is correct?
| Problem you’re trying to solve | Why 5‑axis helps | What to verify |
|---|---|---|
| Multiple faces with tight positional relationship | Fewer re‑clamps → less setup stack‑up | Datum strategy, fixture repeatability, CTQ report tied to datums |
| Angled holes / ports / bosses | Indexing avoids compound fixtures and long tools | Angle / position verification method (CMM or functional gage) |
| Deep pockets, undercuts, tool access limits | Tool approach improves rigidity and finish | Chatter risk, wall thickness control, burr control plan |
| Freeform surfaces (profiles) or blended transitions | Simultaneous tool orientation reduces scallops | Post‑processor validation, surface inspection approach (scan/CMM) |
When 5‑axis is worth it (and when it is not)
5‑axis is not automatically “better”. The best route is the one that meets CTQs with the lowest total risk. Use this decision table as a buyer:
| Approach | Best when | Typical risk | Buyer mitigation |
|---|---|---|---|
| 3‑axis, multiple setups | Simple geometry, generous positional CTQs | Setup stack‑up across faces | Define datums clearly; require fixture plan + in‑process checks |
| 3+2 indexing | Angled features but stable datums | Angle setup repeatability | Ask how angles are qualified; request sample CTQ report format |
| Simultaneous 5‑axis | Complex surfaces, tool access, blend quality | Rotary axis / post errors, orientation‑dependent position error | Ask for rotary axis proof / validation; align inspection method |
| Turn‑mill / mill‑turn | Rotational parts + milled features | Datum transitions between turning and milling | Require datum scheme; verify concentricity/position method |
Practical tip: ask the supplier to propose two routes (e.g., 3+2 vs simultaneous) and to state
why the chosen route is lower risk for your CTQs. If they cannot explain trade‑offs, expect surprises later.
Common failure modes in 5‑axis programs
5‑axis quality problems often show up as “mystery rejects” because the part may pass on the supplier’s inspection method but fail on the customer’s method—or fail only in certain orientations.
Orientation‑dependent position error
Features measure differently depending on how the part is oriented on the CMM or how the rotary axes cut the feature.
Post‑processor mismatch
The toolpath is “correct” in CAM but the posted code introduces small but systematic errors (especially on profiles).
Datum / fixture mismatch
The machining datum and inspection datum do not match the functional intent, so acceptance becomes disputed.
Thin‑wall chatter and heat
Tool access improves, but poor strategy causes wall spring, heat growth, and surface defects.
If you want a deeper technical lens on rotary‑axis verification, see: ISO 230‑7 5‑axis rotary error mapping (proof) and the related incident case: orientation‑dependent position failure.
RFQ data that prevents quote surprises (Vietnam sourcing)
For complex 5‑axis parts, most cost and lead time risk comes from missing information: unclear CTQs, unclear inspection method, and unknown finishing/handling requirements. Use this RFQ checklist to reduce ambiguity:
Geometry + design intent
- STEP/Parasolid model + drawing (PDF) with revision
- Datum scheme tied to functional assembly
- Identify CTQs (position/flatness/profile fits) and the features that drive function
- Surface finish and edge break expectations (burr control matters)
Quality + acceptance
- Inspection method preference (CMM, scan, functional gage) if you have one
- Dimensional report requirements (full report vs CTQ‑only)
- FAI/first article expectations (if applicable)
- Material/finish certificates and any receiving templates
How to qualify a 5‑axis supplier in Vietnam
Qualification is about reducing uncertainty. A strong 5‑axis supplier should be able to show not only equipment capability, but also process control and inspection evidence.
Evidence to request (before you place a PO)
- Machine/axis validation approach: how rotary axes are checked (periodic checks, mapping, validation parts)
- CAM/post control: post version control and simulation discipline
- Setup plan: datums, fixtures, sequence, and what is checked in‑process
- Inspection plan: CTQs, method, and report format (sample report is ideal)
- Handoff package: CoC, material certs, finish certs, packaging/kitting instructions
Buyer shortcut: ask for a redacted example of a CTQ dimensional report and the supplier’s CoC format.
If they cannot show documentation structure, expect receiving friction later.
Inspection strategy for multi‑axis parts
The fastest way to lose time in outsourcing is a measurement dispute. Avoid it by aligning: datums, measurement method, and pass/fail decision rule.
What to align
- Datum definition (A/B/C) matches how the part is used
- Coordinate system and orientation for reporting
- CTQ list (do not “measure everything” if CTQ acceptance is what matters)
- Decision rules if tolerances are tight relative to measurement uncertainty
Where disputes come from
- Different fixturing/orientation on the CMM
- Different probing strategy / filtering on scans
- Thermal state differences (warm‑up vs cold measurement)
- Ambiguous drawing interpretation for profile/position
Receiving‑ready handoff (docs, labeling, packaging)
For U.S. and Europe buyers, “quality” includes the handoff: clear paperwork, clear labeling, and packaging that protects precision surfaces. This is where many Vietnam sourcing programs succeed or fail.
- Documentation: CoC, material certs, finish certs, CTQ report (as required)
- Revision control: reference drawing/model revision on CoC and labels
- Packaging: protect edges/surfaces; prevent micro‑motion debris; kit parts if your receiving process needs it
- Communication: ship notice + packing list structure that matches your receiving template
How SEMIX supports 5‑axis programs
SEMIX is a Vietnam CNC machining partner focused on predictable acceptance: we quote with clear assumptions, propose the lowest‑risk route (3+2 vs simultaneous when applicable), and deliver inspection evidence organized for receiving.
- DFM feedback and route proposals during RFQ
- Setup planning tied to datums and CTQs
- Inspection plan + redacted sample report formats available
- Documentation packages and export‑ready handoff
