Executive takeaway

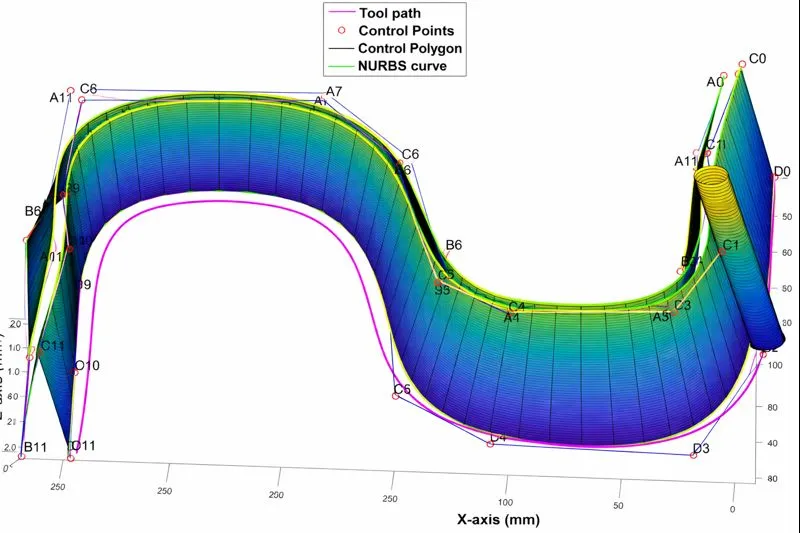

In 5-axis machining, the same tool tip location can be produced by many different axis configurations. If rotary-axis geometry is wrong, TCP error becomes orientation-dependent—meaning parts can pass at one tilt angle and fail at another.
The practical solution is not “probe more.” It is:
- Verify rotary-axis behavior using ISO 230‑7 logic,
- Qualify performance with an orientation sweep, and
- Lock machine + postprocessor + tool assembly states for CTQ programs.
What ISO 230‑7 addresses (in production terms)
ISO 230‑7 covers the geometric accuracy, error motion, and speed-induced position changes of axes of rotation.
Part-level symptoms that often trace back to rotary-axis errors:
- True position passes at 0° but fails at 20–40° tilt
- Complex 5-axis surfaces show angle-dependent scallop changes
- Multi-face alignment problems that depend on orientation sequence
Error amplification: why tool length matters
Rotary pivot error becomes a linear tool tip error scaled by tool length and tilt geometry. Practical implication:
- A program that “works” with a short tool may fail with a long gauge length.
- Control must include tool assembly definition (holder + gauge length).
The orientation sweep qualification (simple, powerful)
What it is
Machine or probe the same feature (or datum artifact) at multiple rotary orientations. Plot deviation vs angle.
What it detects
- Pivot location errors
- Axis squareness interactions
- Orientation-dependent compensation issues
- Postprocessor kinematic mismatches
How to use it in production
- Use it as a requalification method after maintenance, crash, or post update.
- Use it for CTQ families (not every job).
Why probing alone can mislead
Probing validates geometry under very low forces. Cutting introduces deflection, thermal effects, and chip-load asymmetry. A robust qualification includes:
- probing verification (kinematic consistency)
- cutting verification (process + deflection consistency)
Control plan (CTQ 5-axis programs)
- Lock tool assembly ID and gauge length for release
- Lock postprocessor revision; any change triggers requalification
- Define rotary verification schedule and triggers:
- crash
- rotary maintenance
- spindle replacement
- major servo tuning
- post update
- For thin walls: qualify late-cycle orientation stability (stiffness changes with material removal)
Buyer evidence pack
- Rotary-axis verification summary (method + frequency + triggers)
- Orientation sweep chart for representative part families
- Postprocessor revision log + validation artifact
- Tool assembly control (runout, balance, gauge length)
FAQ for buyers
- Why do 5-axis parts fail only at certain angles?
- What is rotary-axis “error motion” and why does it matter?
- What requalification triggers do you follow after maintenance or a crash?
- How do you control postprocessor and tool assembly states in production?
